Removing Tie Rod Ends
Here is a tip for removing tie rod ends,

  1. Remove split pin
  2. Undo nut (leave the nut on the end of the thread as a way of protecting it incase of a miss with the hammer)

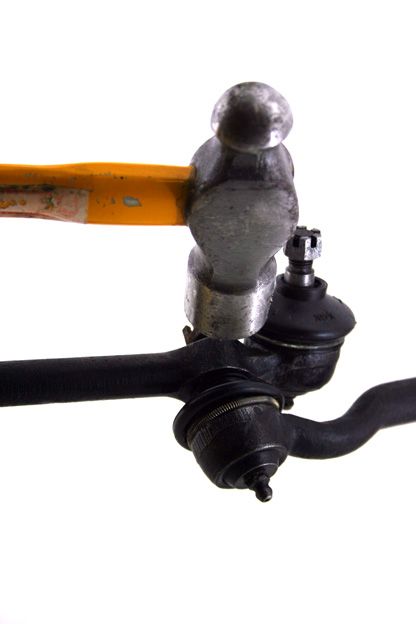

  3. Give the side of the draglink a sharp hit with a hammer (not the tie rod end)
  4. Remove tie rod end (this may require a very light tap on the end of the nut, Anything harder will require a repeat of step 3)
