Reference Material |
|
|
|
|
Wheel Alignment, Front.
| Toe-In. | 2-3mm |
|---|---|
| Camber. | 1°45' |
| Caster. | 2°15' |
| King Pin Angle. | 6°30' |
| Side Slip. | Less than 3mm with each |
| Running distance 1mm | |
| Turning Angle (Inside). | 45° |
| Turning Angle (Outside). | 36°36' |
| Rotation Torque Front Hub (Motive). | Less than 9 kg-cm |
| Clearance of Front Hub to diretion along the Shaft. | Less than 0.08mm |
| Clearance of Ball Joint to direction along the Shaft. | Less than 0.9mm |

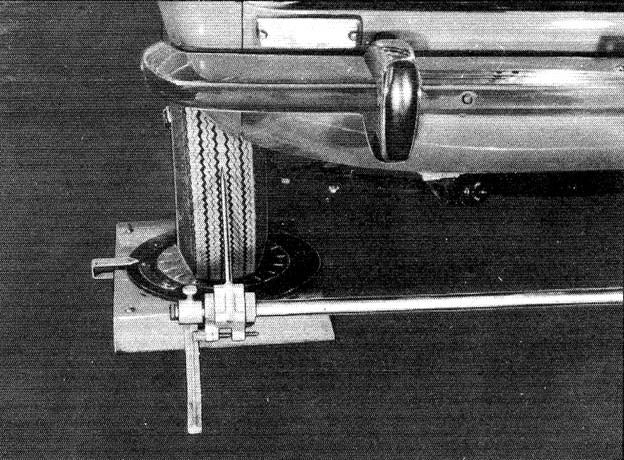

Toe In.

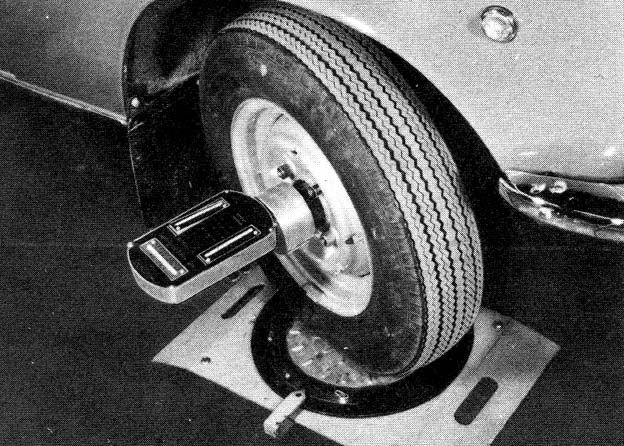

Camber.

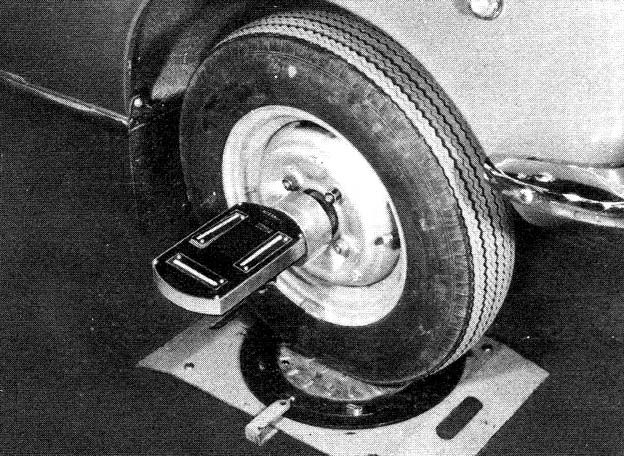

Caster.
