Lubricating System

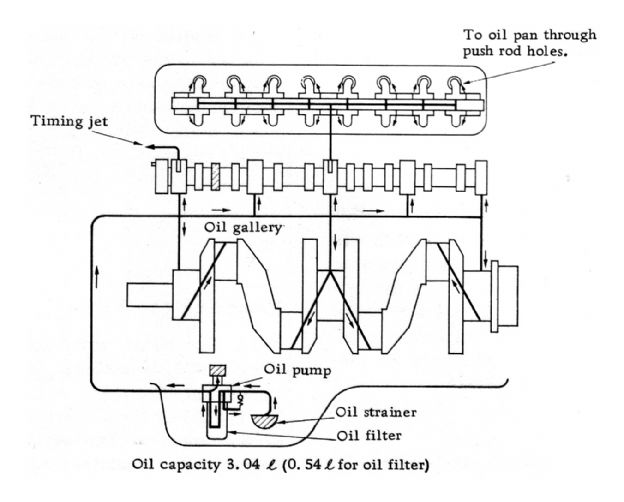

Lubrication method Forcel full flow
Oil pump type Trochoid type
Oil filter Paper filter
Oil pan capacity (L) 2.5
Oil Content 3.04L (include oil filter 0.54L)
Distance between level gauge mark Min & Max 0.6L

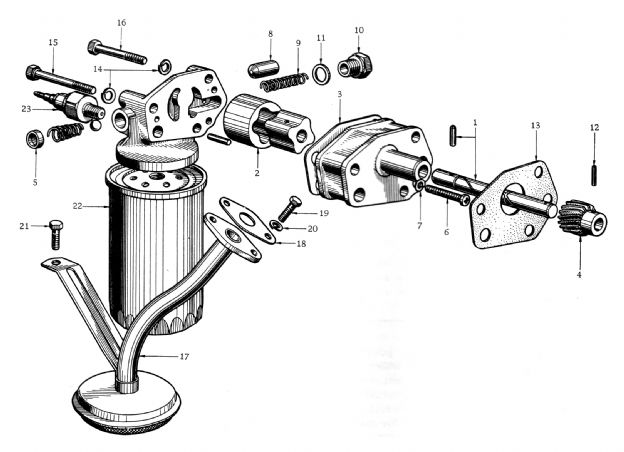

Oil Pump, Oil Filler, Oil Strainer

  1. Ass'y-shaft, drive oil pump
  2. Gear-drive
  3. Gasket-oil pump cover
  4. Gear-drive
  5. Plug-welsh
  6. Bolt
  7. Washer-lock
  8. Valve-oil regulator
  9. Spring-oil regulator
  10. Plug-oil regulator
  11. Washer-oil regulator
  12. Pin-slotted


  1. Gasket-oil pump to cylinder block
  2. Washer-lock
  3. Bolt
  4. Bolt
  5. Ass'y-strainer, oil
  6. Gasket-oil strainer
  7. Bolt
  8. Washer-lock
  9. Bolt
  10. Ass'y-oil filter, catridge
