Suspension

	B10	B20	VB10
Front	Transverse leaf spring	Transverse leaf spring	Transverse leaf spring
Spring size, Length x Width x Thickness-No. (mm)	976 x 50 x 4-6	976 x 50 x 4-6	976 x 50 x 4-6
Spring constant (Kg/mm)	2.05	2.05	2.05
Rear	Semi-elliptic leaf spring	Semi-elliptic leaf spring	Semi-elliptic leaf spring
Spring size, Length x Width x Thickness-No. (mm)	1150 x 50 x 7-2	1150 x 50 x 6-2	1150 x 50 x 7-2
	50 7-2	50 x 7-1	50 x 5-1
		50 x 13-1	50 x 11-1
Spring constant (Kg/mm)	1.45	4.5	3.95
Shock absorber, Front	Telescopic type double action	Telescopic type double action	Telescopic type double action
Stroke (mm)	130	130	130
Damping force (0.3m/sec) Expansion	58Kg	70Kg	58Kg
Damping force (0.3m/sec) Compression	20Kg	30Kg	20Kg
Shock absorber, Rear	Telescopic type double action	Telescopic type double action	Telescopic type double action
Stroke (mm)	170	175	170
Damping force (0.3m/sec) Expansion	70Kg	105Kg	90Kg
Damping force (0.3m/sec) Compression	25Kg	39Kg	45Kg

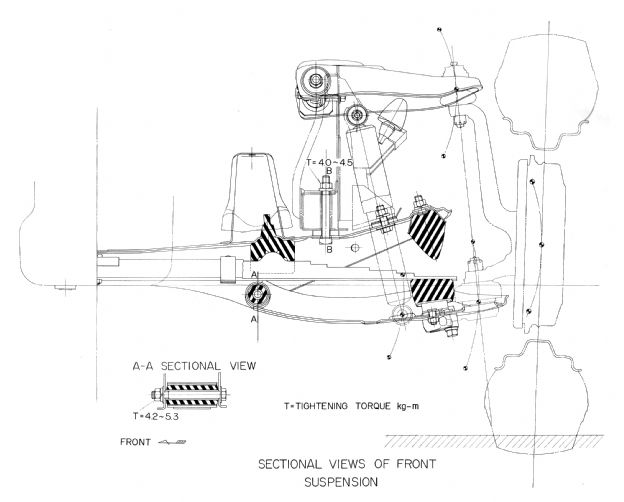

Sectional View of Front Suspension
