Reference Material |
|
|
|
|
Ignition System
| Firing method | Battery coil type |
|---|---|
| Ignition timing B.T.D.C./r.p.m. | 8 Deg/600 |
| Ignition order | 1-3-4-2 |
| Ignition coil, Type | C14-51 |
| Ignition coil, Manufacturer | Hitachi |
| Distributor, Type | D412-53 |
| Distributor, Manufacturer | Hitachi |
| Distributor, Type | L45 |
| Spark Plug, Manufacturer | Hitachi |
| Spark Plug, Thread (mm) | 14 |
| Spark Plug, Cap (mm) | 0.7-0.8 |
Ignition Coil
| Hitachi | Mitsubushi | |
|---|---|---|
| Type | C14-51 | HP5-10E |
| Primary Voltage | 12v | 12v |
| Secondary voltage (3 ways spark gap) | More than 6mm | More than 6mm |
| Primary coil resistance | 3.2 - 4.1 Ω | 3.2 - 4.1 Ω |
| Secondary coil resistance | Below 20000 Ω | Below 17000 Ω |

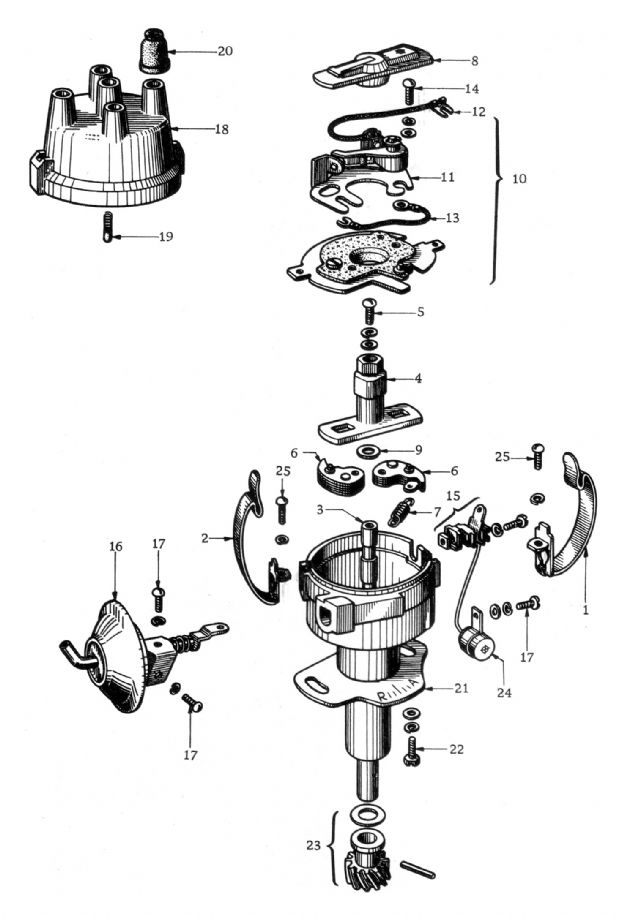

Distributor (Hitachi)
.jpg)
|
|
