Transmission



Type
3 Forward 1 reverse all synchromesh on forward gears 4 Forward 1 reverse all synchromesh on forward gears
Operating method
Remote control Floor shift
Gear ratio 1st 3.38 3.76

2nd 1.73 2.17

3rd 1 1.4

4th - 1

Reverse 3.64 3.64
Propeller shaft  Length x Out. Dia. X In. dia. (MM) 1.178 x 63.5 x 60.3 1.178 x 63.5 x 60.3
Type of universal joint
Splicer Splicer
Final gear Type of gear Hypoid Hypoid

Gear ratio 4.111 (B10), 4.375 (VB10) 4.111 (B10), 4.375 (VB10)
Differential gear Housing type Banjo type Banjo type

Type & number of gear Straight bevel pinion 2 each Straight bevel pinion 2 each

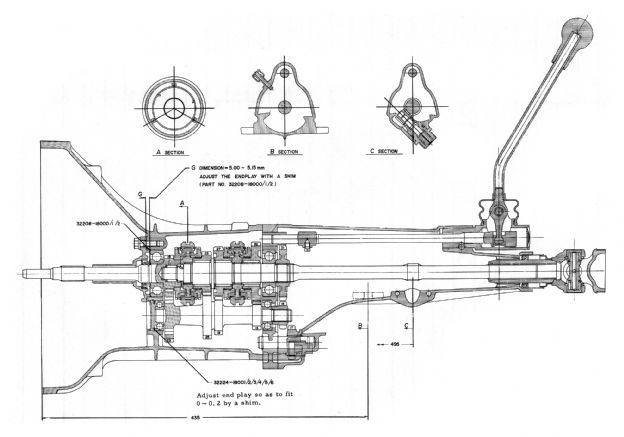

4 Speed Manual

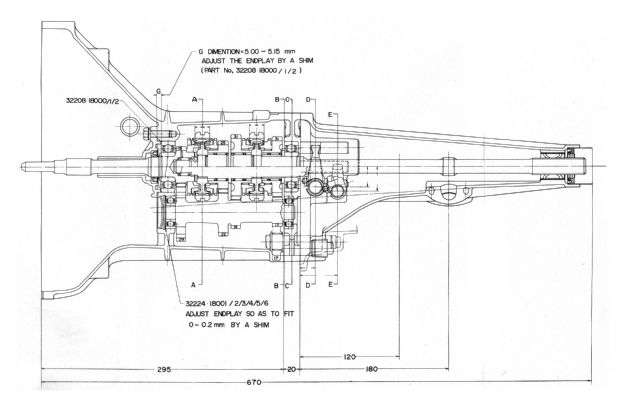

3 Speed Manual, Colum Shift

Type Synchromeshed on the 1st, 2nd, & 3rd gear

Reverse one stage
Gear ratio 1st 3.380, 2nd 1.734, 3rd 1.000, Rev. 3.640
Gear type Helical gear type
Back-lash of each meshing gear Main drive gear-driven gear, second gears, firstgear
Gear ratio of speed meter 4.00 (16/4)
Main Drive Gear
Main Drive Gear Nos. 19
Main Shaft
Second gear teeth Nos. 25
First gear teeth Nos. 31
Reverse gear teeth Nos.
Reverse gear thrust clearance 0.15 - 0.25 mm
First gear thrust clearance 0.15 - 0.25 mm
Second gear thrust clearance 0.1 - 0.3 mm
Front gear thrust clearance 0.1 - 0.35 mm
Clearance between boulk ring & each gear 0.8 - 1.45 mm
Cover adjusting shim 0.5, 0.2, 0.1 mm
Bearing type of spline (Front) Ball bearing (Rear) Bushing
Counter Gear Shaft
Driven gear teeth Nos. 29
Counter gear teeth Nos. 22
First gear teeth Nos. 14
Reverse teeth gear 13
Clearance of front thrust 0.02 - 0.08 mm
Thrust washer size 0.8, 0.9, 1.0, 1.1, 1.2, 1.3 mm
Bearing type of spline Front & rear ball bearing
Reverse Idler
Gear teeth Nos. 17
Clearance between shaft and bushing 0.032 - 0.077 mm
Clearance between gear & adapter plate 0.1 - 0.5 mm
Clearance to snap ring 0.1 - 0.4 mm
Fork shift
Length of locking ball spring 16.4mm at 7Kg
