Reference Material

Steering

Type of gear Recirculating ball type
Gear ratio 15:1
Steering angle inner 45 Deg
Steering angle Outer 36 Deg 36'
Steering wheel dia. (mm) 400
Wheel arrangement, Front 2 Wheels
Whel arrangement, Rear 2 Wheels
Front axel Wishbone ball joint type
Toe in (Unloaded) 2 - 3 mm
Camber (Unloaded) 1 Deg 45'
Caster (unloaded) 2 Deg 15'
Inclination angle of king pin 6 Deg 30'
Type of rear axle Semi-floating type

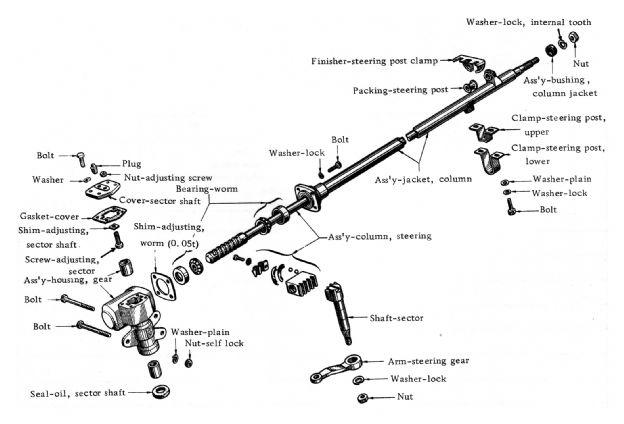

Components of Steering Gear Box

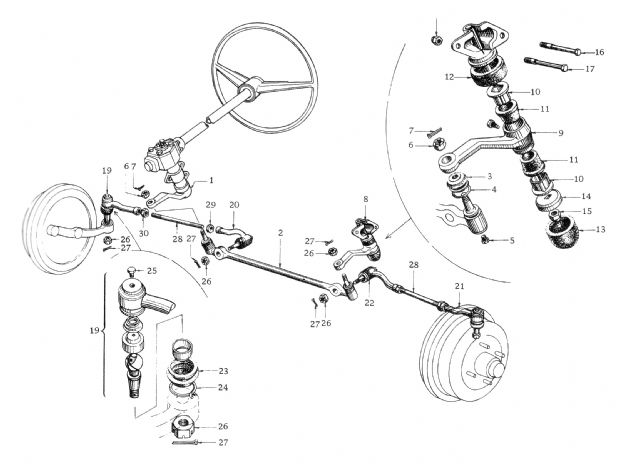

Steering Linkage

  1. Arm-steering gear
  2. Ass'y-rod, cross
  3. Cover-dust, side rod
  4. Clamp-dust cover
  5. Pluf-filler
  6. Nut
  7. Pin-cotter
  8. Ass-y-idler
  9. Arm-idler
  10. Bushing-idler, shaft
  11. Bushing-rubber, idler shaft
  12. Cover-dust, idler shaft
  13. Cover-dust, idler shaft, lower
  14. Washer-idler shaft, lower
  15. Nut-self lock
  1. Bolt
  2. Bolt
  3. Nut
  4. Ass'y-socket, side rod inner (R.H)
  5. Ass'y-socket, side rod inner (R.H)
  6. Ass'y-socket, side rod inner (L.H)
  7. Ass'y-socket, side rod inner (L.H)
  8. Cover-dust, side rod
  9. Clamp-dust cover
  10. Plug-filler
  11. Nut
  12. Pin-cotter
  13. Bar-side rod
  14. Nut-lock, side rod (L.H)
  15. Nut
