1000 Specs

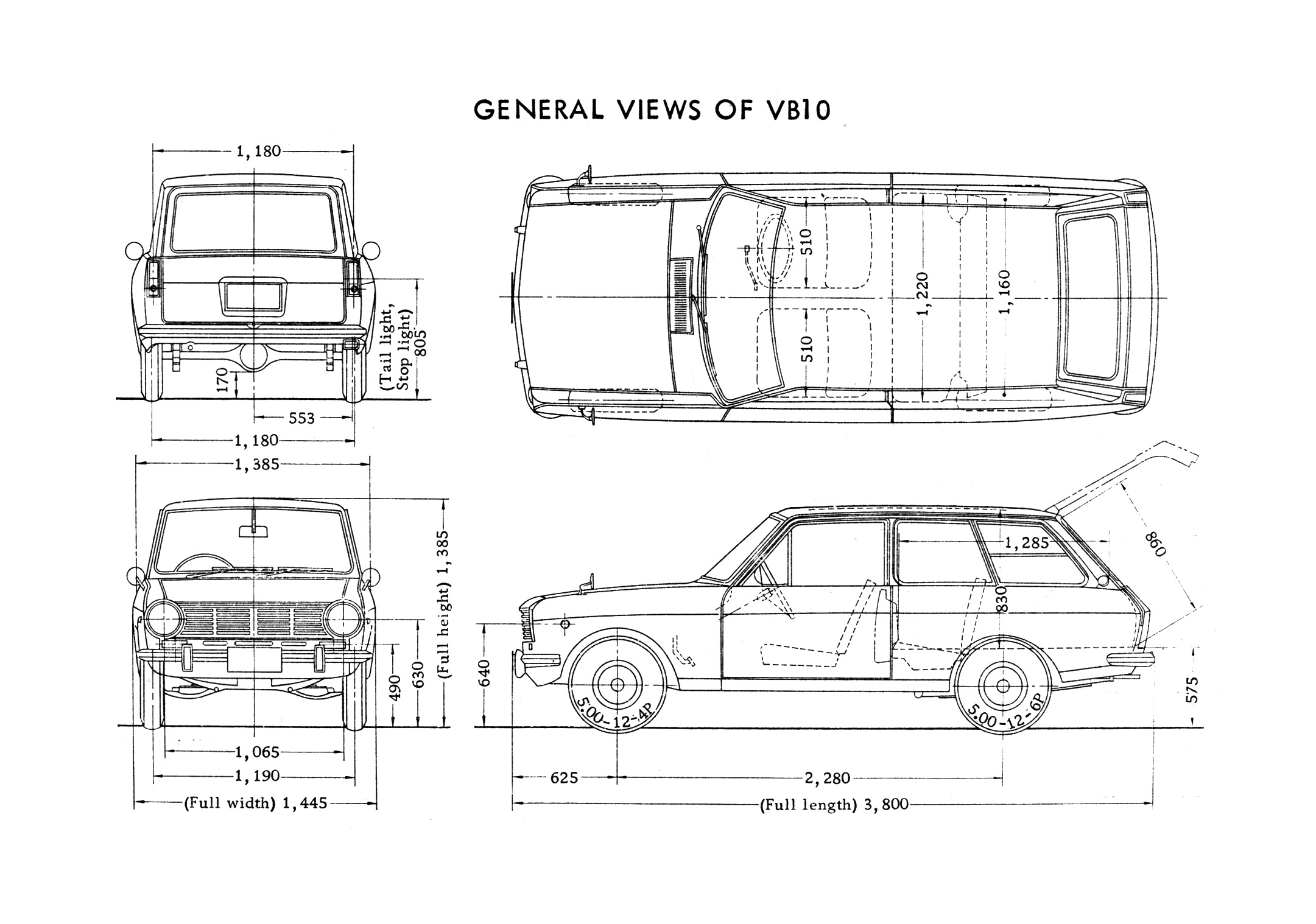

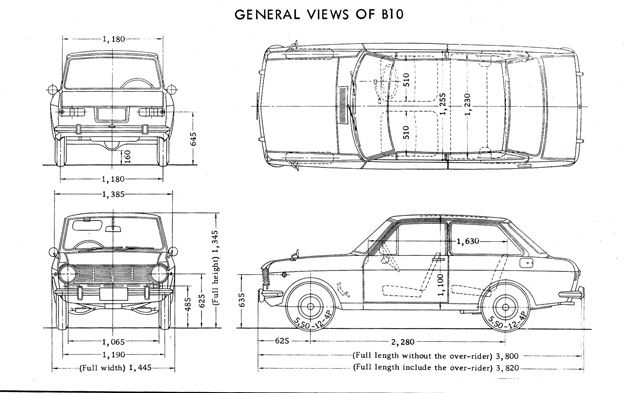

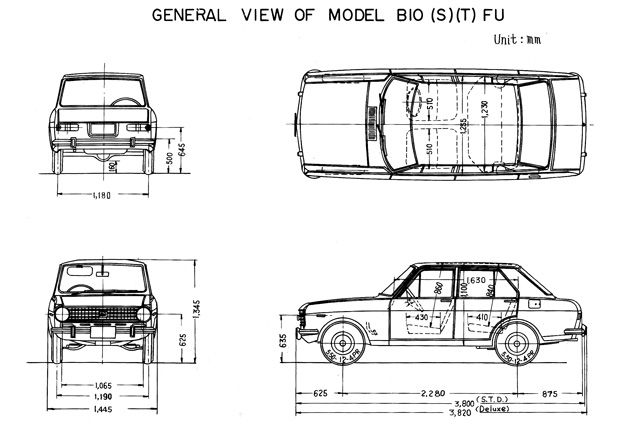

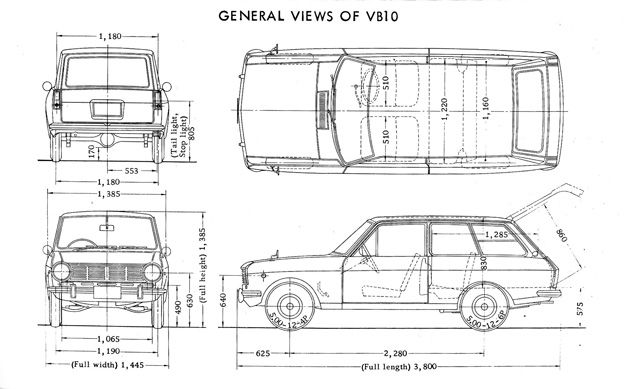

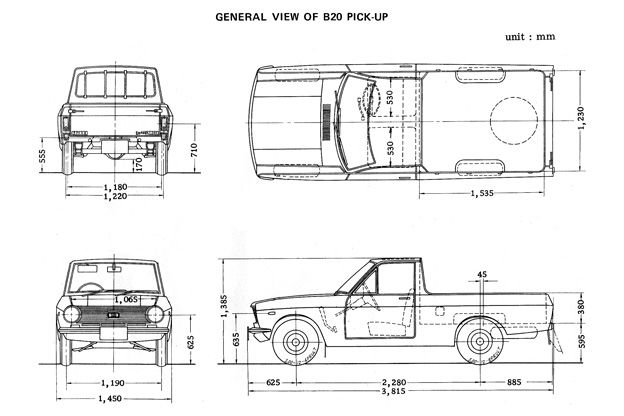

Click on the blueprints for larger views.

ItemB10B10B20VB10VB10
Model S.T.D. Deluxe - S.T.D. Deluxe
Overal length (mm) 3800 3820 3815 3800 3820
Overal width (mm) 1445 1445 1450 1445 1445
Overall height (mm) 1345 1345 1385 1385 1385
Wheel base (mm) 2280 2280 2280 2280 2280
Room spaceI.L.  (mm) 1630 1630 - 1285 1285
I.W.  (mm) 1255 1255 - 1160 1160
I.H.  (mm) 1100 1100 - 830 830
Tread  (mm)Front 1190 1190 1190 1190 1190
Rear 1180 1180 1180 1180 1180
Min. road clea.  (mm) 160 160 170 170 170
O.H. to the F.E. w/0.B.  (mm) 580 580 580 585 585
O.H. to the R.E. w/o.B.  (mm) 875 875 885 850 850
Vehicle weight (Kg) 625 645 615 645 665
Max I.A. (Deg)Right 49 49 48 49 49
Left 49 49 48 49 49
Max speed (Km/h) 135 135 130 130 130
Grade ability sin 0.387 0.379 0.324 0.306 0.301
Min. turning radius (m) 4 4 4 4 4
