Reference Material

Braking system

Master Brake

Type Front: 2 leading, Rear leading and trailing
Lining dimension, Front (mm) 35 x 4.8 x 195
Lining dimension, Rear (mm) 35 x 4.8 x 195
Total braking area, Front (cm2) 273
Total braking area, Rear (cm2) 273
Inner dia. Of drum (Front & Rear) mm 203.2

Oil Brake

Inner dia of master cylinder (mm) 17.46
Inner dia. Of wheel cylinder, Front (mm) 20.64
Inner dia. Of wheel cylinder, Rear (mm) 20.64
Max. oil pressure Kg/cm2 175

Parking Brake

Type Mechanical for rear wheels
Lining dimension (mm) 35 x 4.8 x 195
Total braking area (cm2) 273
Iner dia. Of drum (mm) 203.2

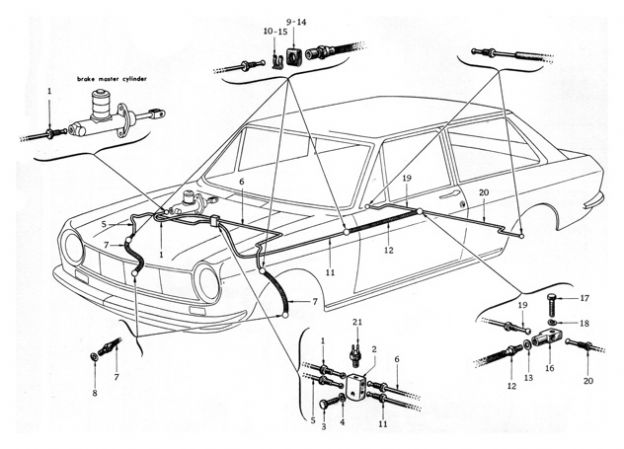

Brake Piping

  1. Ass'y-tube, brake master cylinder to 5 way connector
  2. Connector-brake tube 5 way
  3. Bolt
  4. Washer-lock
  5. Ass'y-tube, front brake (R.H)
  6. Ass'y-tube front brake (L.H)
  7. Ass'y-hose, brake
  8. Gasket-brake tube
  9. Plate-lock
  10. Spring-lock
  11. Tube-brake rear
  1. Ass'y-hose, brake
  2. Gasket-brake tube
  3. Plate lock
  4. Spring-lock
  5. onnector-brake tube 3 way
  6. Bolt
  7. Washer-lock
  8. Ass'y tube, brake rear (R.H)
  9. Ass'y tube, brake rear (L.H)
  10. Ass'y-switch, stop lamp

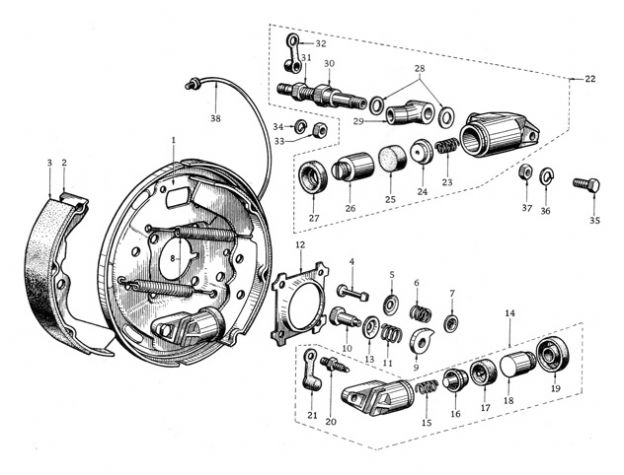

Front Brake

    1. Ass'y-disc, front brake
    2. Ass'y-shoe, front brake
    3. Lining-brake
    4. Pin-anti shoe rattle
    5. Seat-spring
    6. Spring-anti shoe rattle
    7. Retainer-shoe rattle
    8. Spring-return
    9. Cam-adjusting
    10. Stud-adjusting cam
    11. Spring-adjusting cam
    12. Baffle-front brake disc
    13. Spacer-adjusting cam
    14. Ass'y-cylinder, front wheel, fore
    15. Spring-piston
    16. Seat-spring
    17. Cup-piston
    18. Piston-cylinder
    19. Cover-dust
      1. Screw-bleeder
      2. Cap-bleeder
      3. Ass'ycylinder, front wheel, after
      4. Spring-piston
      5. Seat-spring
      6. Cup-piston
      7. Piston-cylinder
      8. Cover-dust
      9. Packing
      10. Connector
      11. Bolt-connector
      12. Screw-bleeder
      13. Cap-bleeder
      14. Nut
      15. Washer-lock
      16. Bolt-connector
      17. Washer-lock
      18. Nut
      19. Ass'y-tube, bridge front

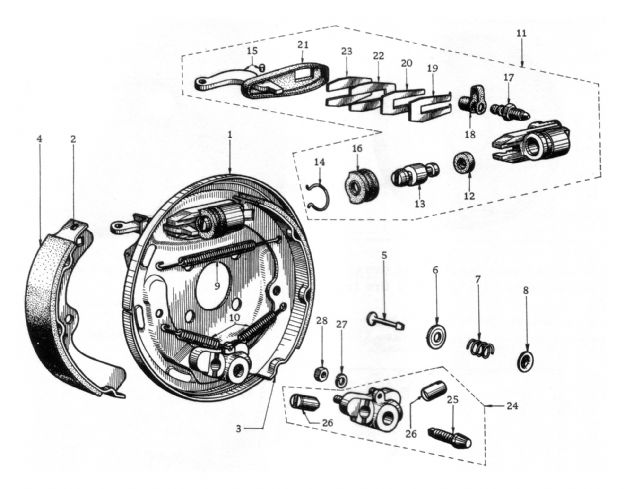

      Rear Brake

      1. Ass'y-disc, rear brake
      2. Ass'y-shoe, rear brake fore
      3. Ass'y-shoe, rear brake after
      4. Lining-brake
      5. Pin-anti shoe rattle
      6. Seat-spring, anti shoe rattle
      7. Spring-anti shoe rattle
      8. Retainer-shoe rattle
      9. Spring-return, brake shoe cylinder
      10. Spring-return, brake shoe adjusting
      11. Ass'y-cylinder, rear wheel
      12. Cup-piston
      13. Piston-cylinder
      14. Ring-snap
      1. Ass'y-lever
      2. Cover-dust A
      3. Screw-bleeder
      4. Cap-bleeder
      5. Shim-adjusting A
      6. Shim-adjusting B
      7. Cover-dust B
      8. Plate-A
      9. Plate-B
      10. Ass'y-adjuster, rear brake
      11. Wedge-adjuster
      12. Tappet-adjuster
      13. Washer-lock
      14. Nut
