Spring Rear

Disconnect From Body.

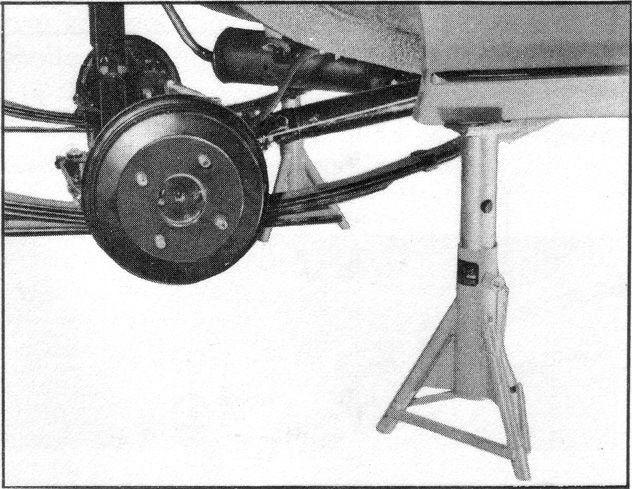

Jack up the body and hold at the side member on the stand.

Take off the shock absorber from spring seat.

Jack up the rear axle housing to release the load.

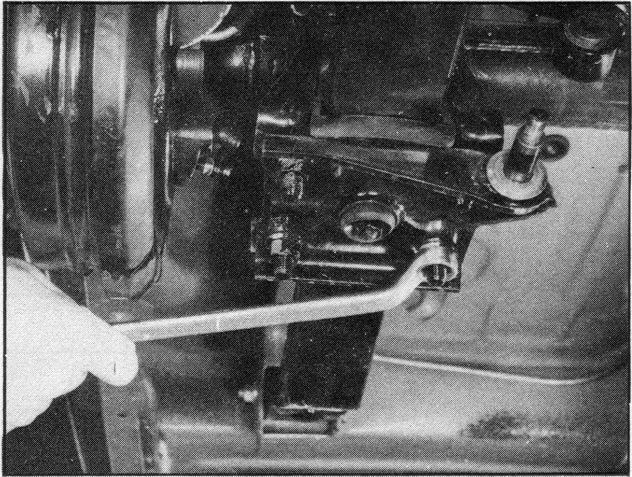

Disconnect bumper, U bolt, Location plate, seat pad spring seat ect.

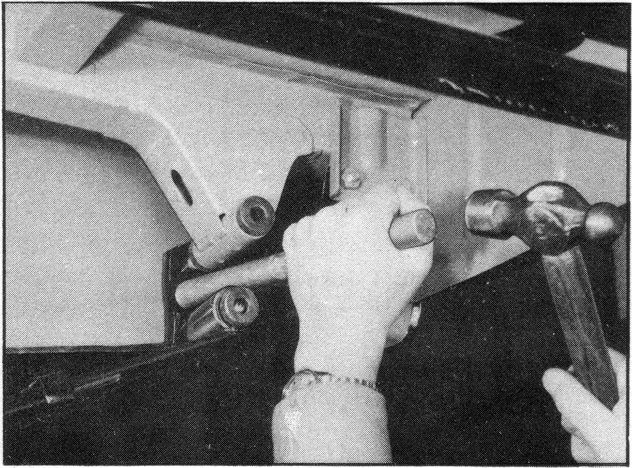

Disconnect the shackle, rear spring front pin and then seperate the rear spring as shown in the pic.

Fixing to the Side Member.

Attach the bushing to the rear spring and rear spring and rear spring bracket.

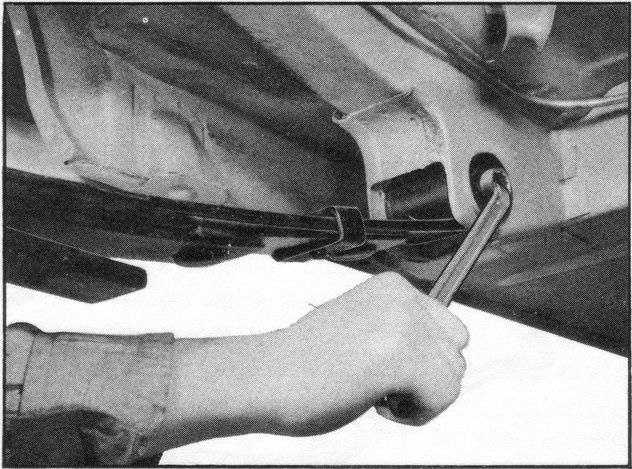

Connect the front side of the rear spring bracket.

Front pin Tightening torque 3.5-4.0kg-m

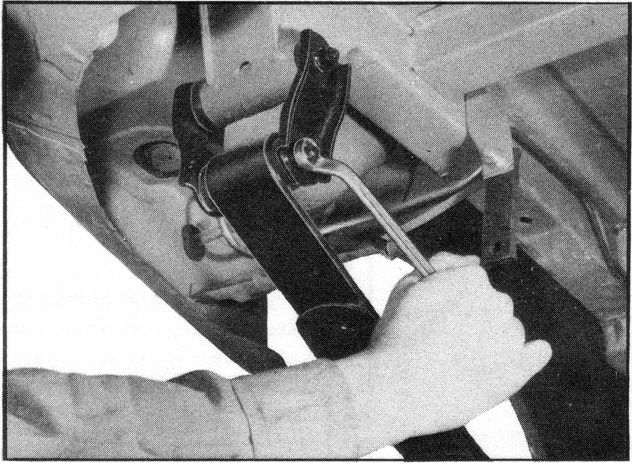

Connect the rear side of spring to the bracket

Shackle pin Tightening torque 2.0-2.5kg-m

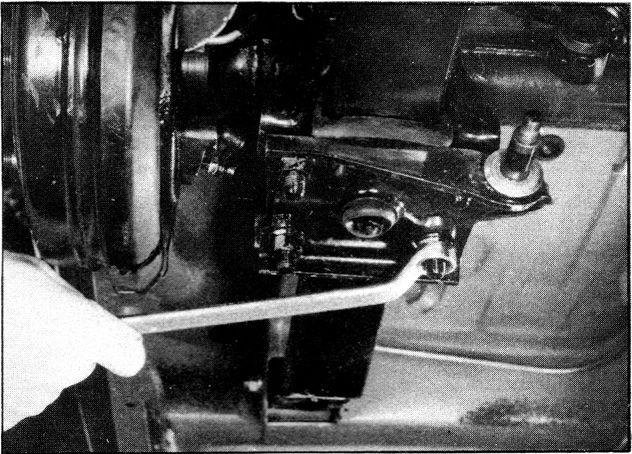

Set up the seat pad, location plate, rear axle bumper, U bolt and spring seat.

U bolt Tightening torque 3.5-4.0kg-m
