Reference Material

Water pump

Rotation ratio water pump pulley 1.05 (For crank pulley)
Current quantity 85L / 400r.p.m.

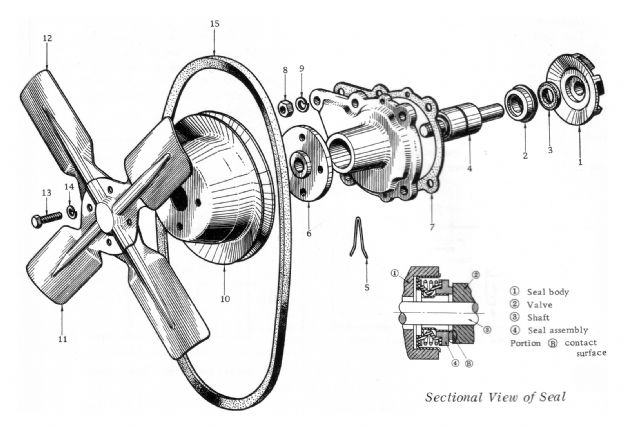

Water Pump

  1. Vane-water pump
  2. Ass'y-seal, water pump
  3. Ass'y-seat
  4. Bearing-water pump
  5. Wire-lock, bearing
  6. Hub-pulley
  7. Gasket-water pump
  8. Nut
  1. Washer-lock
  2. Pulley-fan & water pump
  3. Blade-fan, front
  4. Blade-fan, rear
  5. Bolt
  6. Washer-lock
  7. Belt-fan
