Oil pump

Oil pump Trocoid gear type
Oil pressure 3.5 - 4.0Kg/cm2
Thickness of adjusting shims for oil regulator 0.5mm
Quantity of oil pumping L/min-r.p.m. 19.5/3000

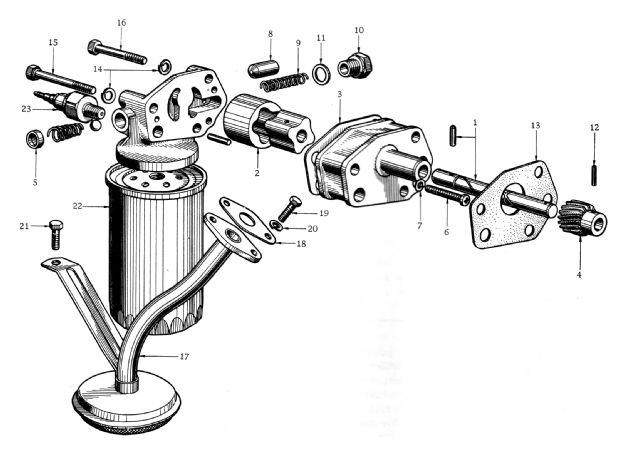

  1. Ass'y-shaft, drive oil pump
  2. Gear-drive
  3. Gasket-oil pump cover
  4. Gear-drive
  5. Plug-welsh
  6. Bolt
  7. Washer-lock
  8. Valve-oil regulator
  9. Spring-oil regulator
  10. Plug-oil regulator
  11. Washer-oil regulator
  12. Pin-slotted


  1. Gasket-oil pump to cylinder block
  2. Washer-lock
  3. Bolt
  4. Bolt
  5. Ass'y-strainer, oil
  6. Gasket-oil strainer
  7. Bolt
  8. Washer-lock
  9. Bolt
  10. Ass'y-oil filter, catridge
  11. Ass'y-switch, oil presure
