Reference Material

Clutch

Type Single dry disc
Number of place 1 (Facing 2)
Ouy.dia. X in. dia x Thickness (MM) 160 x 110 x 3.2
Total friction area (cm2) 212

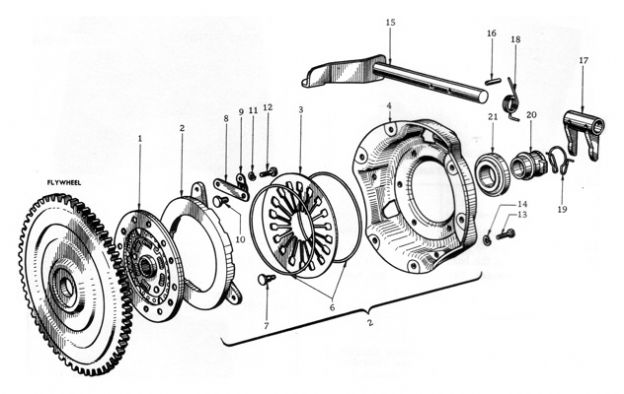

Clutch

  1. Ass'ydisc, clutch
  2. Ass'y-cover, clutch
  3. Spring-diaphragm
  4. Cover-clutch
  5. Plate-pressure
  6. Ring-thrust
  7. Rivet-thrust ring
  8. Plate-hanger
  9. Strap-driving
  10. Rivet-driving strap
  11. Bolt
  1. Washer-lock
  2. Bolt
  3. Washer-lock
  4. Ass'yshaft, clutch release
  5. Pin-taper, clutch release
  6. Yoke-clutch release
  7. Spring-return, clutch yoke
  8. Spring-holder
  9. Sleeve-bearing, clutch release
  10. Bearing-clutch release

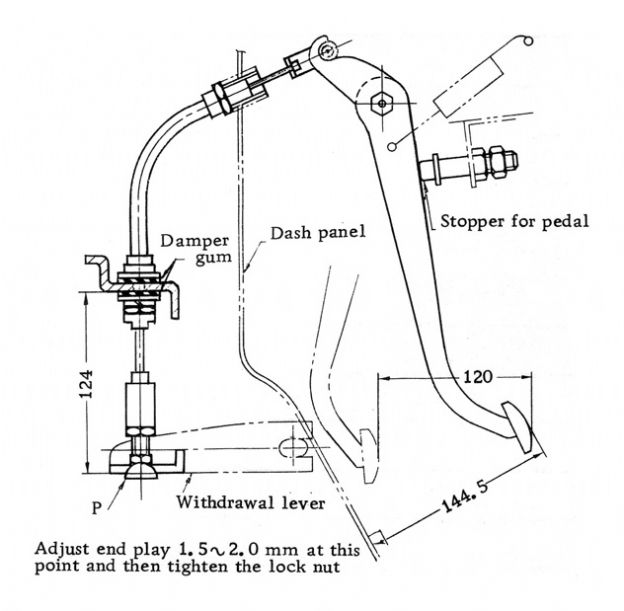

Adjustment

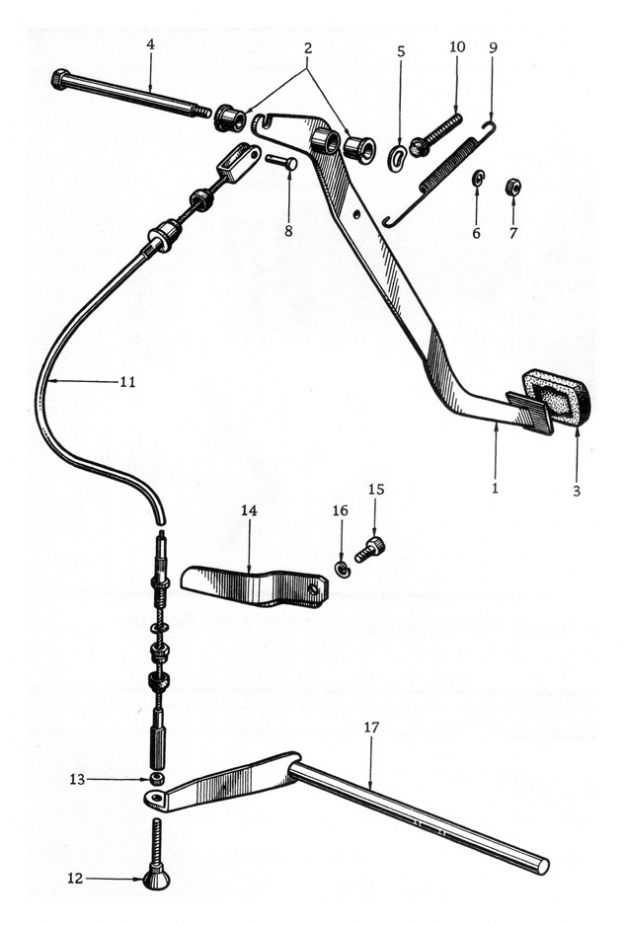

Clutch Pedal & Linkage

  1. Ass'y-pedal, clutch
  2. Push-fulcrum, clutch pedal
  3. Cover-pedal pad
  4. Pin-fulcrum, clutch pedal
  5. Washer-spring
  6. Washer-lock
  7. Nut
  8. Pin-clevis
  9. Spring-return
  1. Stopper-pedal
  2. Ass'y-cable, clutch operating
  3. Bolt-clutch cable
  4. Nut
  5. Bracket-clutch cable lower
  6. Bolt
  7. Washer-lock
  8. Ass'y-shaft, clutch release
