Fuel pump

Performance 750cc/300 min-r.p.m.

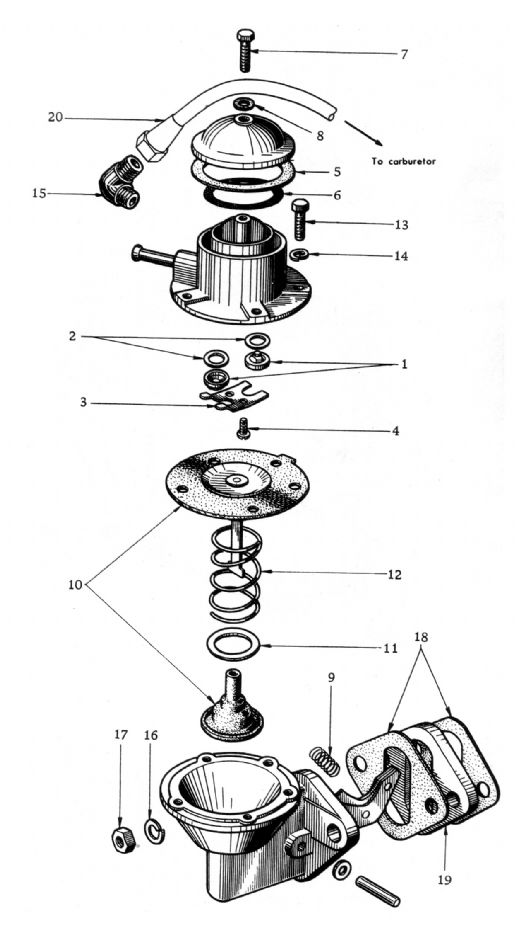

  1. Ass'y-valve fuel pump
  2. Packing-valve
  3. Retainer
  4. Screw-retainer
  5. Packing-cap
  6. Screen
  7. Bolt-cap
  8. Packing-cap bolt
  9. Spring-rocker arm
  10. Ass'y-diaphragm, with seal
  1. Washer-seal
  2. Spring-diphragm
  3. Screw-body set
  4. Washer-seal
  5. Elbow
  6. Washer-lock
  7. Nut
  8. Waher-lock
  9. Spacer-fuel pump
  10. Ass'y-tube, fuel pump to carburetor
